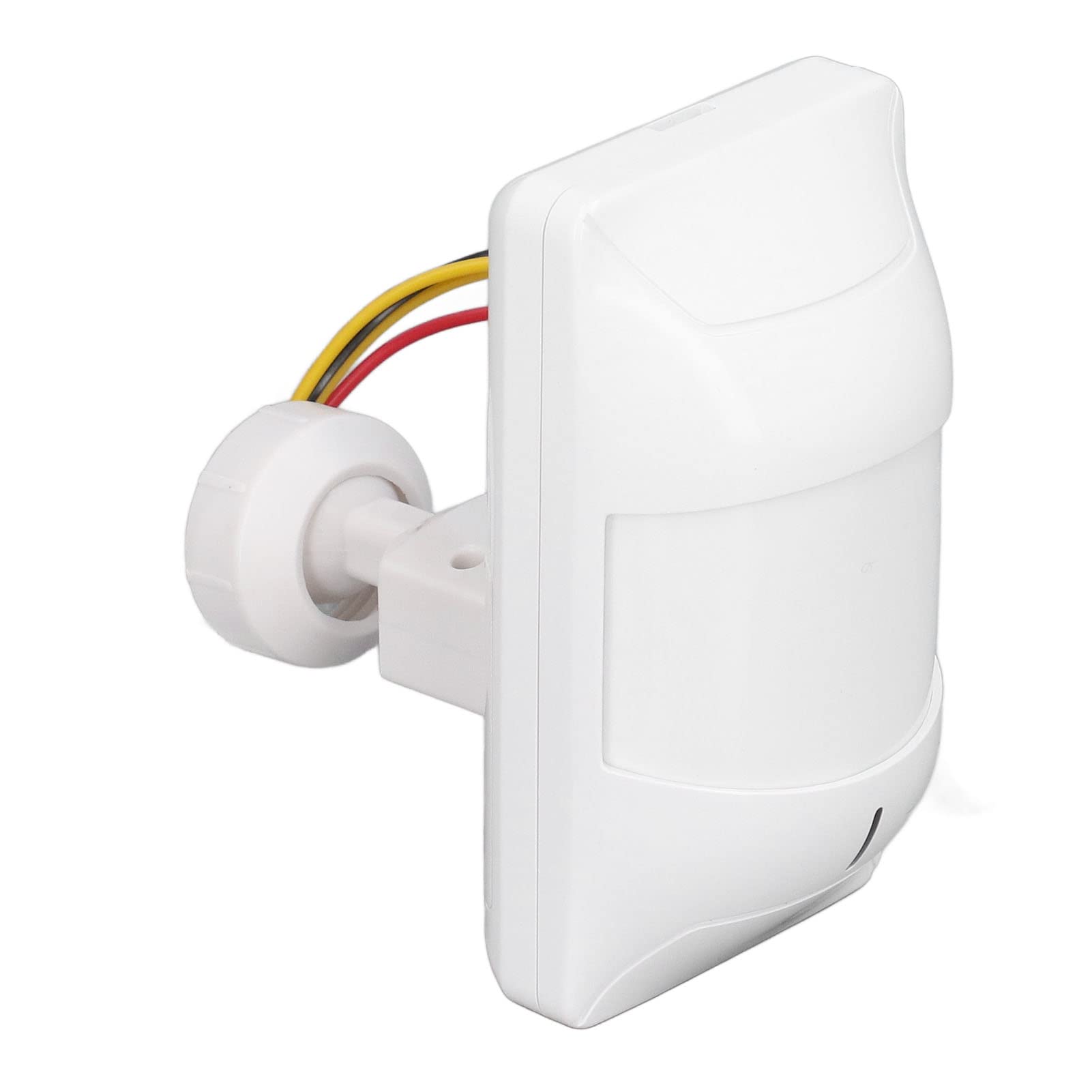

Smart Motion Sensor PIR Detector with SMT Technology - Compact Alert System for Shops, Garages & Home Security - Ideal for Indoor/Outdoor Surveillance & Lighting Control

Specification:Item Type: Smart Motion SensorMaterial: ABSWorking Voltage: DC 9 to 16VSensor: Dual Pyroelectric Infrared SensorDetection Distance: 10meters/10.9ydDetection Angle: 110°Immunity to RFF: 10MHz to 1GHz 20V/mSelf-test Time: About 60sInstallation Method: Wall or Corner InstallationDetection Indication: Red LEDAmbient Humidity: Maximum 95%RH (no condensation)Operating Temperature: -10℃ to +50℃Installation Height: 1.7 to 2.5m (recommended installation height is 2.2m)Detector Size: Approx. 107 x 59 x 39.5mm / 4.2 x 2.3 x 1.6inHow to Use:Please note when installing:The LED indicator should be above the lensThe red wire is connected to the 12V positive pole of the DC power supplyThe black wire is connected to the negative pole of the DC power supply 12VThe yellow wire is connected to the NC (normally closed end) outputThe yellow wire is connected to COM (common) outputPackage List:1 x Smart Motion Sensor1 x Accessories
